Choosing the Right Mold Release for Plastic Molding with Polycarbonate and Universal Resins

Contact us today for immediate shipping: www.completeplastics.com. Plastic molding requires precision and care, especially when working with materials like polycarbonate resins and universal resins. One critical factor that often determines the success of the molding process is the choice of mold release agent. Selecting the right mold release can improve part quality, reduce cycle times, and extend mold life. This post explores how to choose the best mold release for plastic molding, focusing on polycarbonate resins, universal resins, and specific brands like SABIC and Lexan resins.

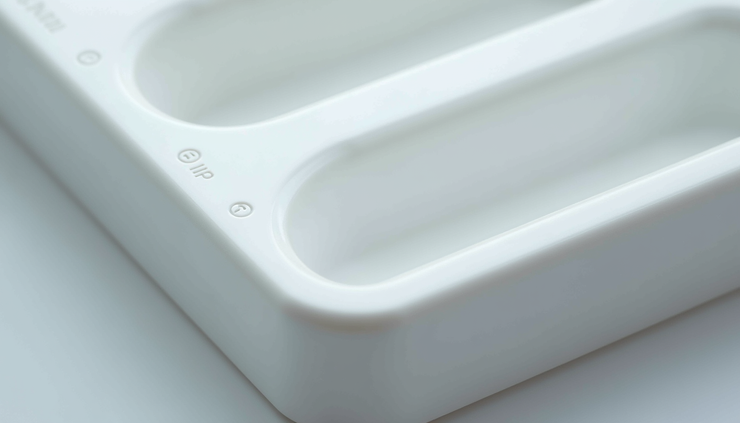

Polycarbonate plastic mold showing smooth finish

Understanding Mold Release Agents

Mold release agents are substances applied to mold surfaces to prevent molded parts from sticking. They create a thin barrier between the mold and the plastic, allowing easy ejection without damaging the part or the mold. Choosing the right mold release depends on the resin type, molding conditions, and desired finish.

Types of Mold Release Agents

• Solvent-based releases: Provide excellent release but may require ventilation due to fumes.

• Water-based releases: Safer and environmentally friendly but sometimes less effective with certain resins.

• Semi-permanent releases: Bond to the mold surface and last for multiple cycles, reducing downtime.

• Dry film releases: Applied as a powder or spray, ideal for high-volume production.




Each type has pros and cons depending on the resin and molding process.

Polycarbonate Resins and Mold Release

Polycarbonate is a durable, transparent thermoplastic used in automotive parts, electronics, and medical devices. It has a high melting point and tends to stick to molds if the release agent is not suitable.

Key Considerations for Polycarbonate

• High temperature resistance: Polycarbonate molding often occurs at temperatures above 280°C (536°F). The mold release must withstand these temperatures without breaking down.

• Surface finish: Polycarbonate parts often require a glossy, clear finish. The mold release should not cause cloudiness or surface defects.

• Chemical compatibility: Some mold releases can react with polycarbonate, causing discoloration or weakening.




Recommended Mold Releases for Polycarbonate

• Silicone-based releases: Provide excellent release and surface finish but can cause paint adhesion issues if parts are painted later.

• Fluoropolymer-based releases: Offer high temperature resistance and chemical inertness, ideal for polycarbonate.

• Semi-permanent releases: Reduce cycle times and improve consistency in high-volume runs.




Universal Resins and Mold Release

Universal resins cover a broad range of plastics, including ABS, polypropylene, and polyethylene. These resins vary widely in properties, so mold release selection must be flexible.

Challenges with Universal Resins

• Varied melting points: Mold releases must work across different temperature ranges.

• Different surface energies: Some resins stick more than others, requiring stronger or more specialized releases.

• Cycle time optimization: Efficient release agents help reduce cooling and ejection times.




Mold Release Options for Universal Resins

• Water-based releases: Work well with many universal resins and are environmentally friendly.

• Solvent-based releases: Effective for tougher resins but require careful handling.

• Powder releases: Useful for textured molds or resins prone to sticking.




SABIC and Lexan Resins: Specific Considerations

SABIC is a leading supplier of polycarbonate resins, including the well-known Lexan brand. These resins are widely used in demanding applications, so mold release choice is critical.

Characteristics of SABIC and Lexan Resins

• High impact resistance

• Excellent optical clarity

• Heat resistance up to 280°C

• Sensitive to certain chemicals and mold release agents




Mold Release Tips for SABIC and Lexan

• Use mold releases tested and approved by SABIC for best results.

• Avoid silicone-based releases if parts require painting or bonding.

• Consider semi-permanent fluoropolymer releases for high-volume production.

• Test mold release on small batches to check for surface defects or discoloration.




Practical Steps to Choose the Right Mold Release

1. Identify the resin type: Know if you are working with polycarbonate, universal resins, or specific brands like SABIC Lexan.

2. Understand molding conditions: Temperature, pressure, and cycle time affect mold release performance.

3. Consider part requirements: Surface finish, painting, and bonding needs influence mold release choice.

4. Test multiple releases: Trial runs help identify the best release agent for your process.

5. Consult resin and mold release suppliers: They often provide compatibility charts and technical support.

6. Monitor mold and part quality: Adjust mold release application frequency and amount as needed.




Benefits of Choosing the Right Mold Release

• Improved part quality: Smooth surfaces, no sticking, and consistent dimensions.

• Reduced cycle times: Faster ejection and less downtime for cleaning.

• Extended mold life: Less wear and damage from sticking parts.

• Cost savings: Less scrap and rework, better productivity.




Summary

Choosing the right mold release for plastic molding with polycarbonate and universal resins requires understanding the resin properties, molding conditions, and part requirements. Polycarbonate resins like SABIC and Lexan demand high-temperature resistant and chemically compatible releases, often fluoropolymer-based or semi-permanent types. Universal resins need flexible mold release options that work across different materials and temperatures. Testing and supplier consultation are essential steps to find the best solution.
