Maximizing Profit in Plastics Design through Effective Design for Manufacturability Techniques

In the fast-paced world of the plastics industry, mastering design for manufacturability (DFM) is essential for success. DFM focuses on streamlining part design for efficient production, reducing costs, and minimizing defects. By embracing DFM, manufacturers can sidestep potential issues during fabrication and ensure products meet customer demands while boosting profits.

This article explores vital DFM elements and shares practical insights to enhance manufacturing processes and results.

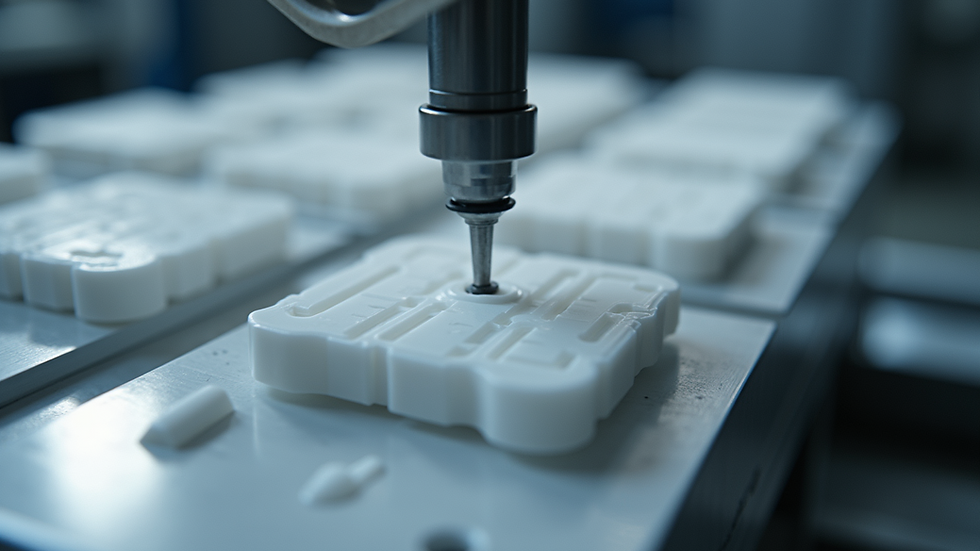

Close-up view of a plastic mold showcasing uniform wall thickness

Part Complexity Considerations Plastics Manufacturability Techniques

A key step in DFM is assessing the complexity of the part design. Simplified designs can significantly lower costs, with reductions in material usage by up to 20%. This strategy also minimizes defect risks during production. Plastics Manufacturability Techniques For instance, complex geometric shapes may suffer from uneven cooling, leading to issues like warping.

By opting for simpler designs, manufacturers improve their processes, boost consistency, and cut errors. This focus on manufacturability supports both production efficiency and cost savings.

Uniform Walls

Uniform wall thickness is essential for high-quality plastic parts. Thickness variations can trigger uneven cooling—leading to warping and surface blemishes. To avoid these complications, strive for consistent wall thickness throughout the design.

For example, assuming a typical wall thickness of 3 mm, ensuring uniformity can lead to a 30% reduction in cooling time. This also improves material flow during molding, enhances cooling, and minimizes the chance of defects. Incorporating rounded corners can help diffuse pressure and improve the overall strength of the final product.

Draft Angles

Integrating draft angles into the design is critical for efficient mold release. Proper draft angles can reduce demolding forces by up to 50%, allowing parts to exit the mold smoothly and quickly.

Adding an angle of 1 to 3 degrees to vertical surfaces creates better separation. This speeds up production, decreases the chances of part damage during removal, and enhances the quality of the finished item.

Radii and Fillets

Implementing radii and fillets in part design is vital for enhancing strength and streamlining production. Sharp cuts can create stress points that lead to part failure.

For instance, replacing a sharp edge with a 5 mm radius can distribute tension over a larger area, decreasing defect occurrences. This approach ensures a more durable final product while facilitating improved material flow during molding.

Flow Optimization

Optimizing material flow within the mold is crucial for achieving consistent dimensional accuracy. Enhanced flow can eliminate the risk of incomplete fills, which can lead to costly mistakes.

Techniques like adjusting mold designs, repositioning gates, or using advanced materials can significantly improve flow characteristics. For example, optimizing the gate position to control flow can prevent wasted material and lower production costs by about 10%.

Gate Location

The correct placement of gates is vital for material run patterns and overall part quality. A strategically positioned gate should be near the thickest section of the mold to allow stable material flow, improving the final product's integrity.

For example, testing various gate locations can lead to a 20% improvement in product quality, ensuring parts meet design specifications without functional or aesthetic flaws.

Avoid Marks

Plastic parts can suffer from unsightly marks and weld lines due to disrupted material flow during molding. These defects can detract from both the appearance and usability of the final product.

To combat this issue, controlling the runner system and gate design is essential. By maintaining a smooth and consistent flow of materials, manufacturers can significantly reduce the presence of defects, yielding a higher-quality product that satisfies customer expectations.

Emphasizing DFM for Future Success

Focusing on design for manufacturability is crucial in the plastics industry. DFM not only leads to cost reduction but also enhances product quality and customer satisfaction. By considering factors like part complexity, uniform wall thickness, draft angles, radii and fillets, flow optimization, gate location, and defect prevention, manufacturers can run their operations more efficiently and profitably.

As the industry evolves, prioritizing DFM principles will be indispensable for staying ahead in a competitive market. By refining designs with manufacturability in mind, manufacturers can strengthen their profitability while delivering superior products that delight customers.
